Materials
- Body: GD-AlSi12 EN AB 46100
- Cover: GD-AlSi12 EN AB 46100
- External treatments
- Sandblasting+phosphating+dust polyurethane coating
Weight
- 1,7 ÷ 2 Kg without slam shut
- 2,5 ÷ 3 Kg with slam shut
Safety Devices and Accessories:
- Regulator inlet filter.
- Over pressure shut-off device (/B version).
- Under pressure shut-off device (/B version).
- Safety shut-off device for lack of feeding (/B version).
- Relief valve.
- Integrated by-pass.
- The safety shutoff devices can only be reset manually.

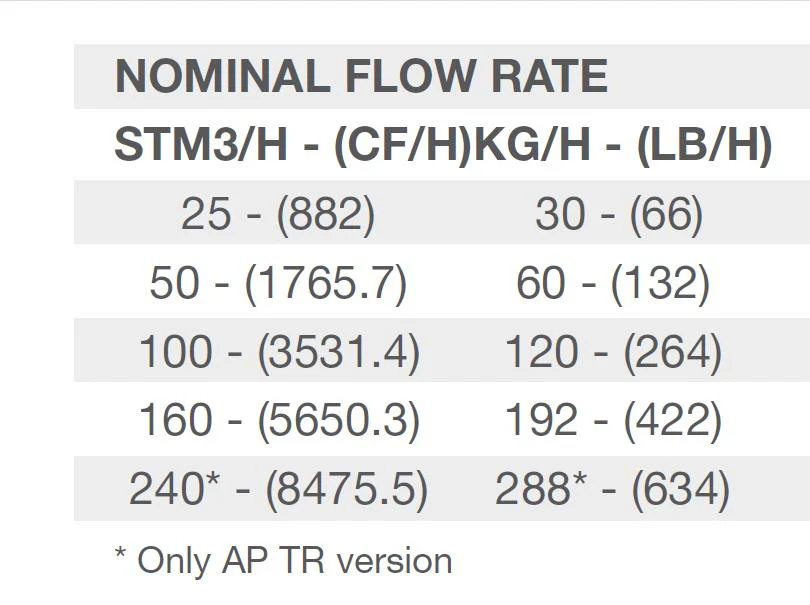

- Azote flow rate: multiply the value in the table
Stmc/h G.N. x 0.789
CONFORMING TO THE 97/23 CE PED DIRECTIVE
Main Features:
- Inlet pressure range bpu: 1÷20 bar – bpu: 14.5÷290 Psi
- Max allowable pressure: 20 bar – PS: 290 Psi
- Outlet pressure range Wd:
AP: 300÷800 mbar – 120,5:321,5” wc
TR: 800÷4500 mbar – 321.5÷1808.4” wc - Over pressure shut – off setting range:
Wd OPSO 450÷7000 mbar – Wd OPSO 120.5÷2813” wc
Wd UPSO 100÷3000 mbar – Wd UPSO 40.1÷1205.5” wc - Accuracy class: AC 5/10/15%
- Lock up pressure class: SG 30% Max
- Temperature class: 2 (-20°C +60°C) – (-68°F +140°F)
