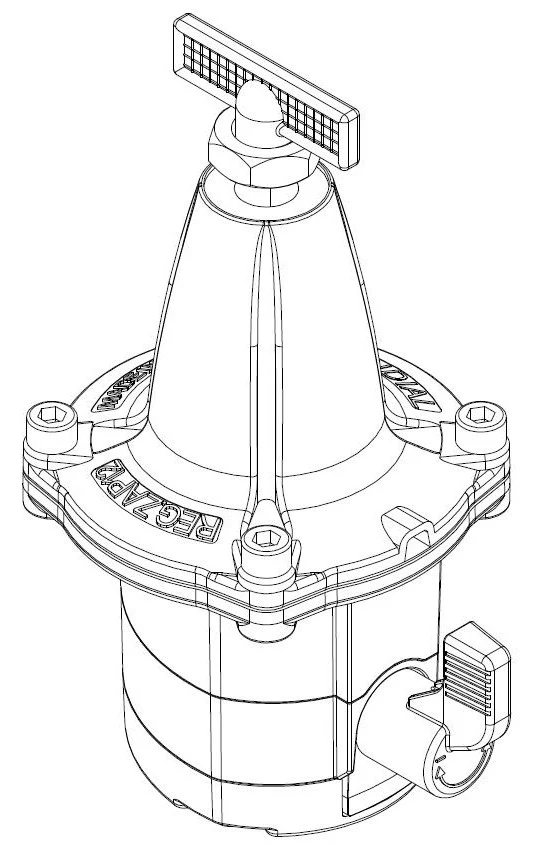

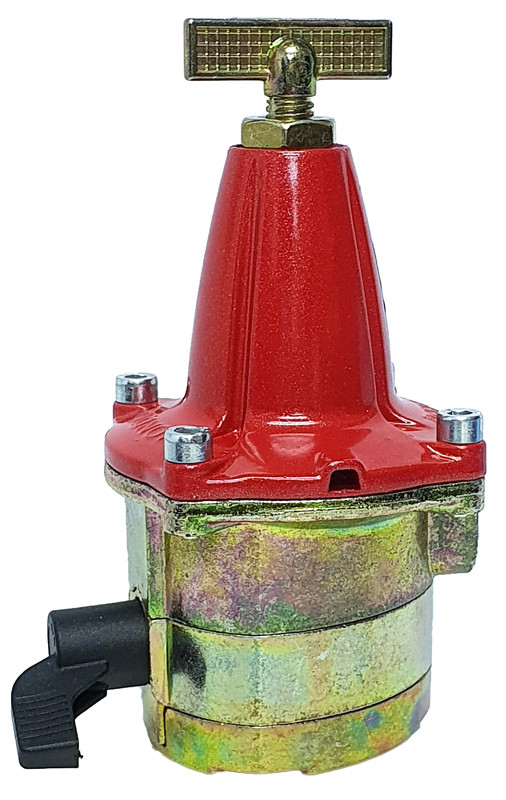

High Pressure Regulator with adjustable calibration
Technical Data
Guaranteed Flow Rate
- 0,5 ÷ 12 kg/h
Inlet Pressure
- Pdmax +0,2 ÷ 7,5 bar (butane)
- Pdmax +0,5 ÷ 16 bar (propane)
- Pdmax +0,2 ÷ 16 bar (LPG)
Nominal outlet Pressure
- 0,5 ÷ 4 bar
Operating Temperature
- Min. -20 °C ÷ Max. +50 °C (Propane and LPG)
- Min. 0 °C ÷ Max. +50 °C (Butane)
Type of gas
- Butane – Propane – LPG
In accordance to EN 16129:2013
Inlet connections: G.52, G.54, G.59 threaded
Outlet connections: H.1 – H.9 threaded
H.50 – H.54 non-threaded
Materials:
- Body: Zamac (ZL5) according to EN 1774 and galvanically protected
- Cover: Zamac (ZL5) according to EN 1774 and protected with powder coating
- Membrane and rubber: NBR rubber according to EN 549
