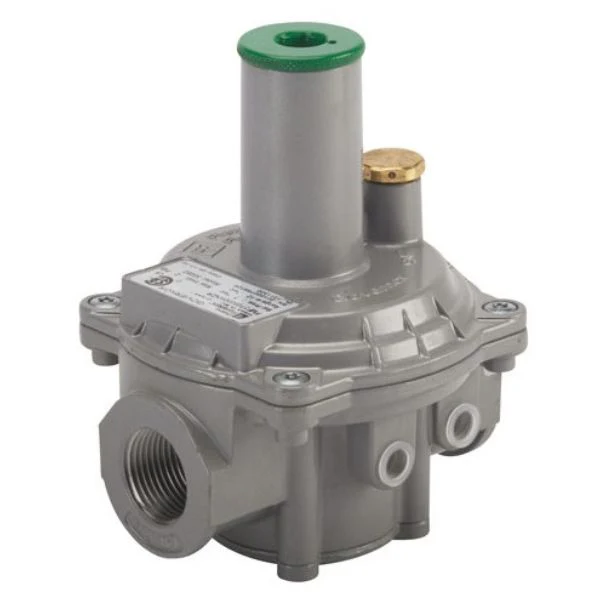

Pietro Fiorentini Gas Pressure Regulator Goval

Technical Features

• Design pressure: 2,5 bar (36Psi)
• Max inlet pressure: 1bar (15Psi)
• Outlet pressure range for high capacity models:
  10÷300 mbar (4″ wc : 4 Psi)
• Outlet pressure range for low capacity models 31051-52-53:
  10÷150 mbar (4″ wc : 2,17 Psi)
• Ambient temperature range: -25°C + 60°C
• Accuracy class AC: up to 10 (EN88-2)
• Lockup pressure class SG: +10 mbar/up to +30% of the Pd (EN88-2)
• Available sizes: from ½” up to DN100
• Filtration degree: 50 μm
