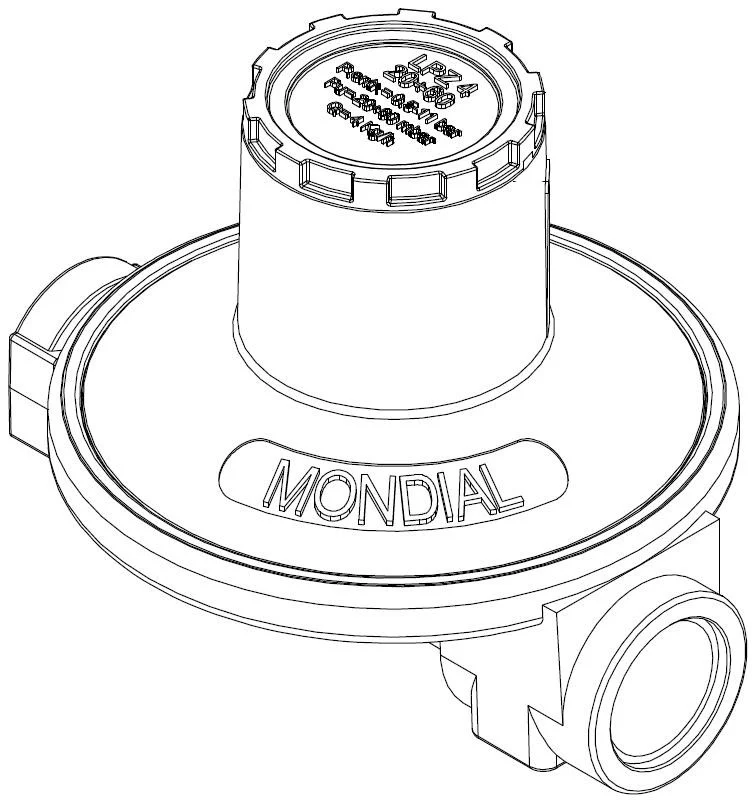

Low Pressure Regulator with Fixed Calibration of 4 kg/h
Technical Data
Guaranteed Flow Rate
- 4 kg/h
Inlet Pressure
- 0,5 ÷ 11 bar (Max 16 bar)
Nominal outlet Pressure
- 30 mbar
Operating Temperature
- Min. -20 °C ÷ Max. +50 °C
Inlet Connection
- Threaded Female G1/4″ (or connecting for bottle)
Outlet Connection
- Threaded Female G3/4″ (or G1/4″)
Type of gas
- Butane – Propane – LPG
In accordance to EN 16129:2013
Inlet connections: G.1 tp G.21 threaded
Outlet connections: H.1 – H.9 threaded
H.50 – H.54 non-threaded
Materials:
- Body: Zamac (ZL5) according to EN 1774 and galvanically protected
- Cover: Zamac (ZL5) according to EN 1774 and protected with powder coating
- Membrane and rubber: NBR rubber according to EN 549
